Omnia Admin Reports: Provisioning

This guide explains how to access and view provisioning reports in Omnia. It covers filtering logs, selecting date ranges, applying filters, and exporting data. It also provides an overview of the provision logs table, detailing device provisioning activities. These logs help monitor provisioning status, track device configurations, and troubleshoot issues efficiently.



Alert: Access Report Roles:

  • Partner Administrator
  • Account Administrator with the Reporting Feature Enabled

Accessing Provisioning

1. Access Provisioning:

  • Go to the Admin Portal and sign in.
  • Click the Reports tab to expand it, then select Provisioning.

Viewing Provisioning

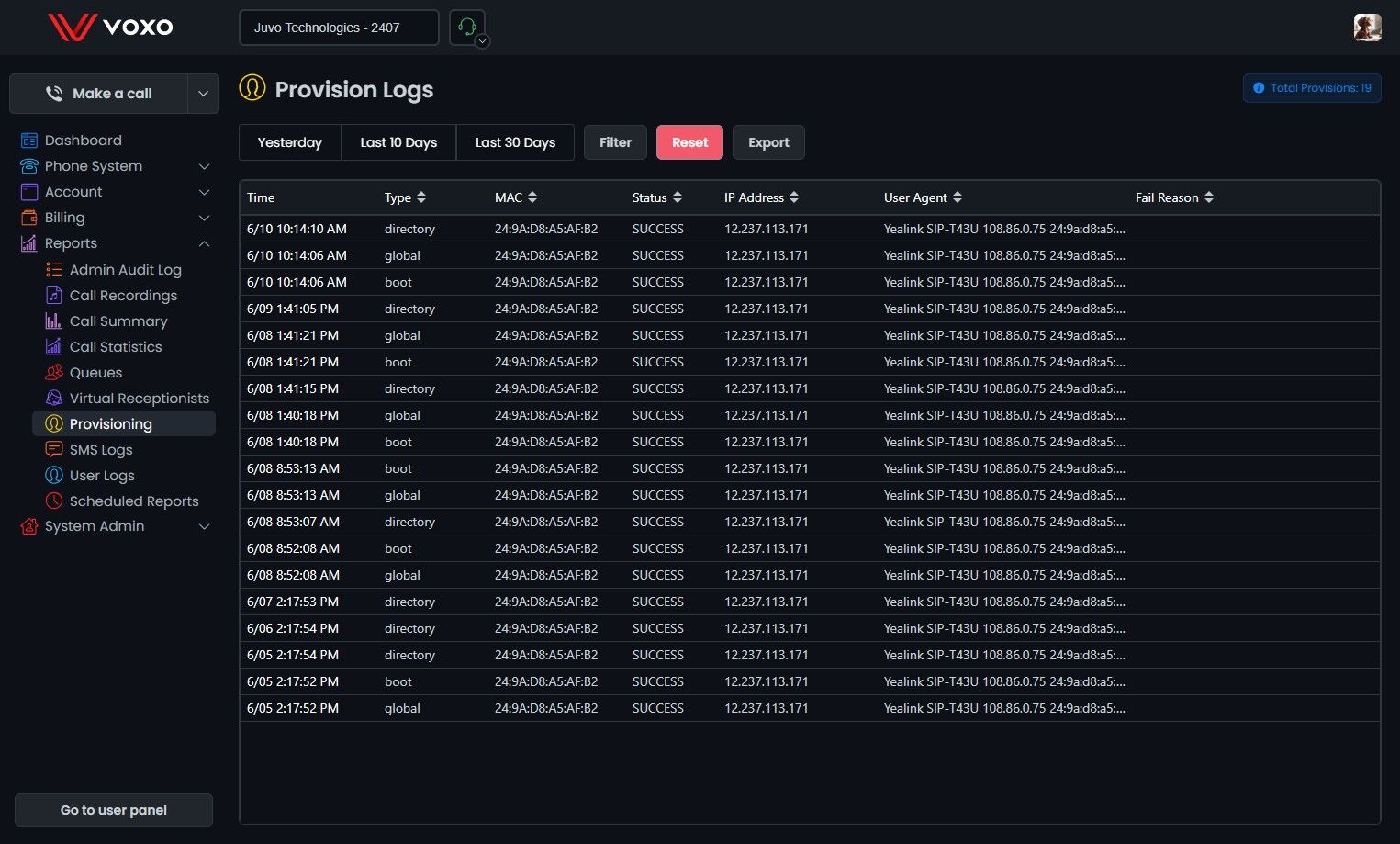

2. View Provisioning Logs:

  • The provision logs display a table with columns such as Time, Type, MAC, Status, IP Address, User Agent, and Fail Reason. The initial results shown will be for today's date.
  • Sort: Click the sort icons next to column headers to arrange items in ascending or descending order.
  • The initial results shown will be for today's date.

Filtering the Provision Logs

3. Preset Filters:

  • Yesterday: Click this button to quickly filter the log entries from the previous day.
  • Last 10 Days: Click this button to quickly filter the log entries from the last 10 days.
  • Last 30 Days: Click this button to quickly filter the log entries from the last 30 days.

4. Filter Settings:

  • Click Filter to open the filter settings.

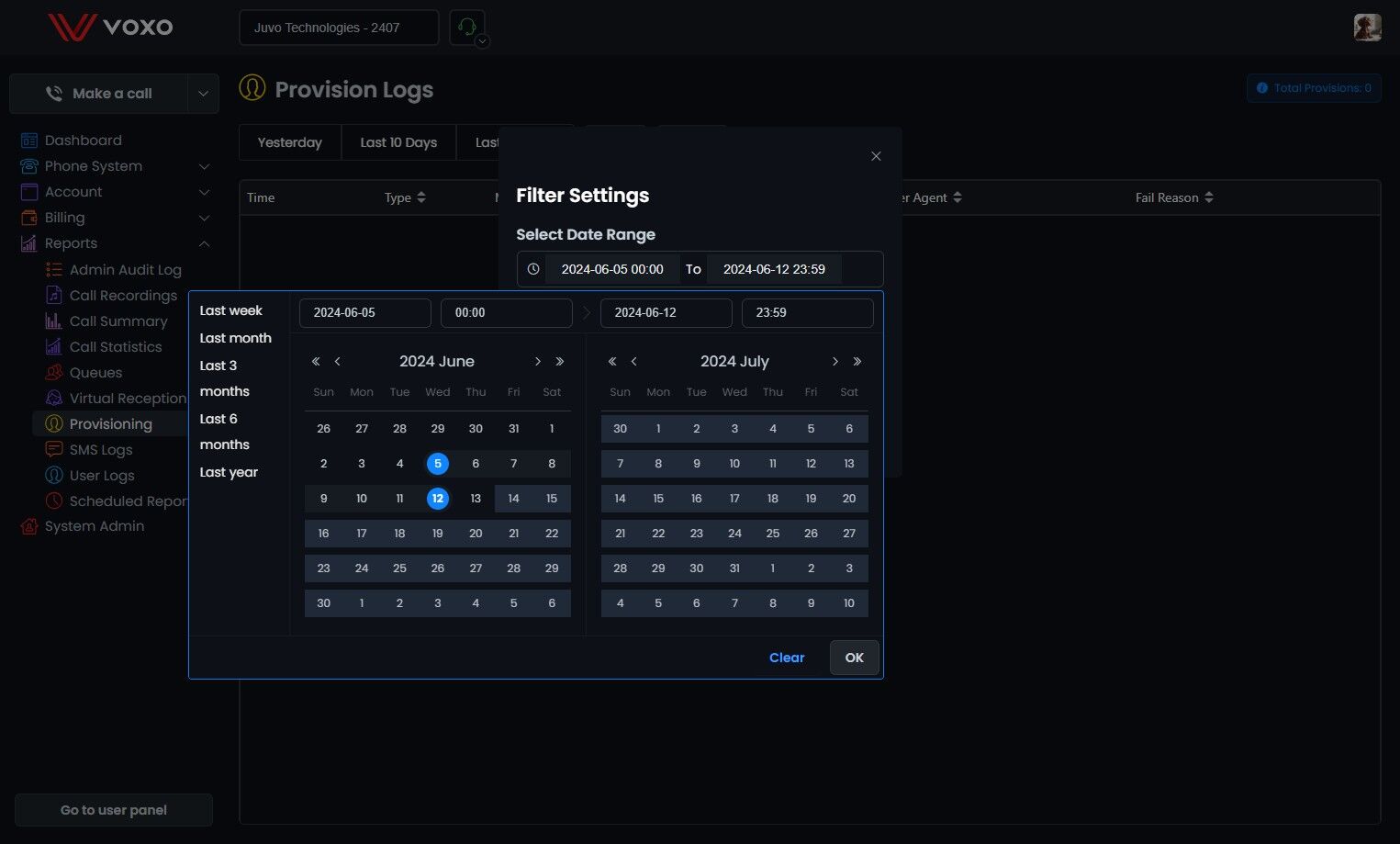

5. Select Date Range:

  • Choose the start and end dates to define the period for which you want to view logs.
  • You can use preset options like Last Week, Last Month, Last 3 Months, Last 6 Months, and Last Year.
  • In addition to the date range, you can also filter by a specific time range within the selected dates.

6. Clear Filters:

  • Click Clear to remove the filters if needed. This allows you to start over while picking from your date ranges.

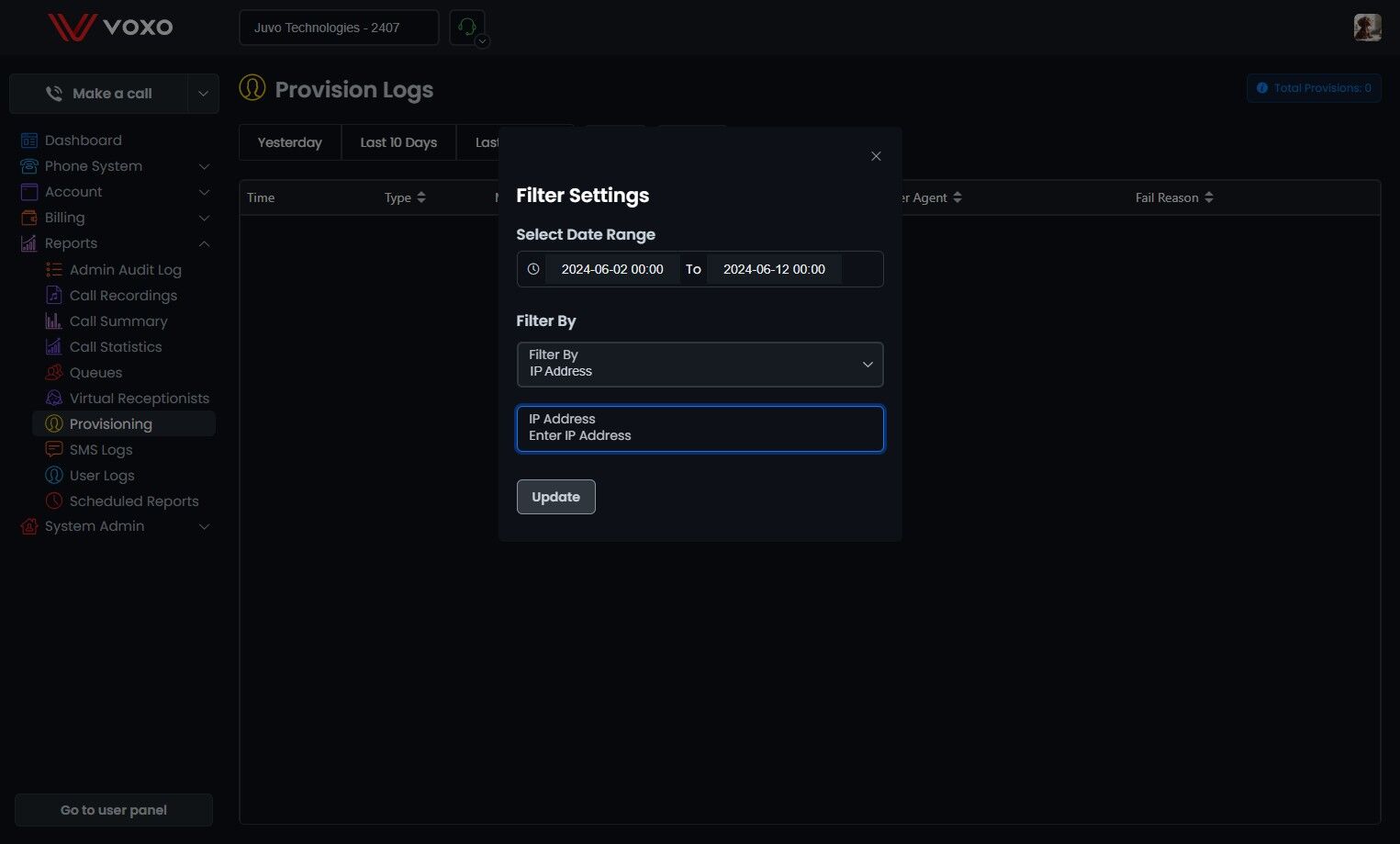

7. Filter By:

  • Choose additional filters such as MAC Address or IP Address to narrow down the results further.
  • Enter the specific criteria based on the selected filter.

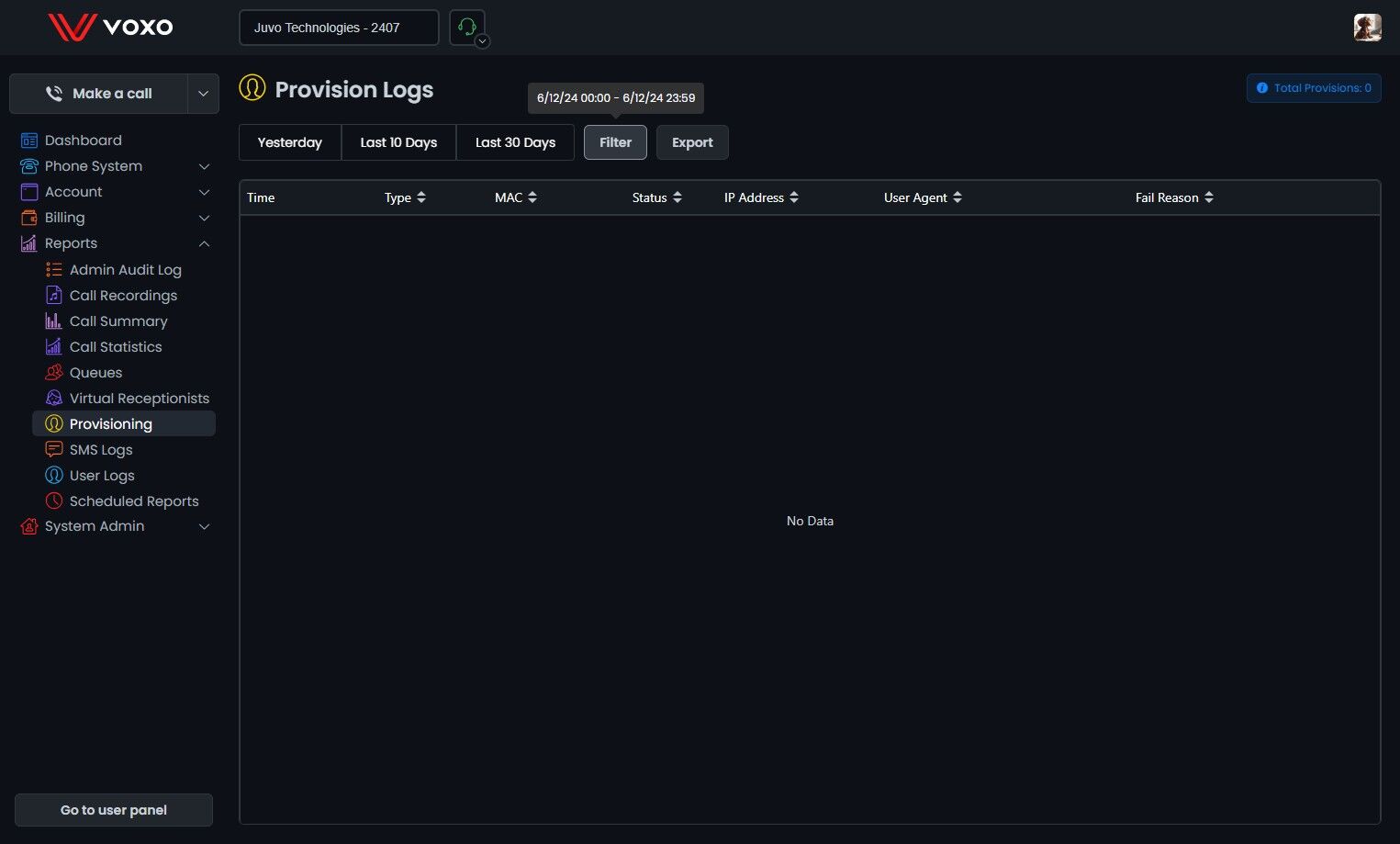

8. Apply Filter:

  • Click Update to apply the filter settings.
  • The details will be displayed on the screen based on your filters.

9. Reset Filters:

  • Click Reset to remove your filters and start over if needed.

Exporting the Provision Logs

10. Export Button:

  • Click Export to download the filtered provision log data in CSV format.
  • Click OK to confirm the export.

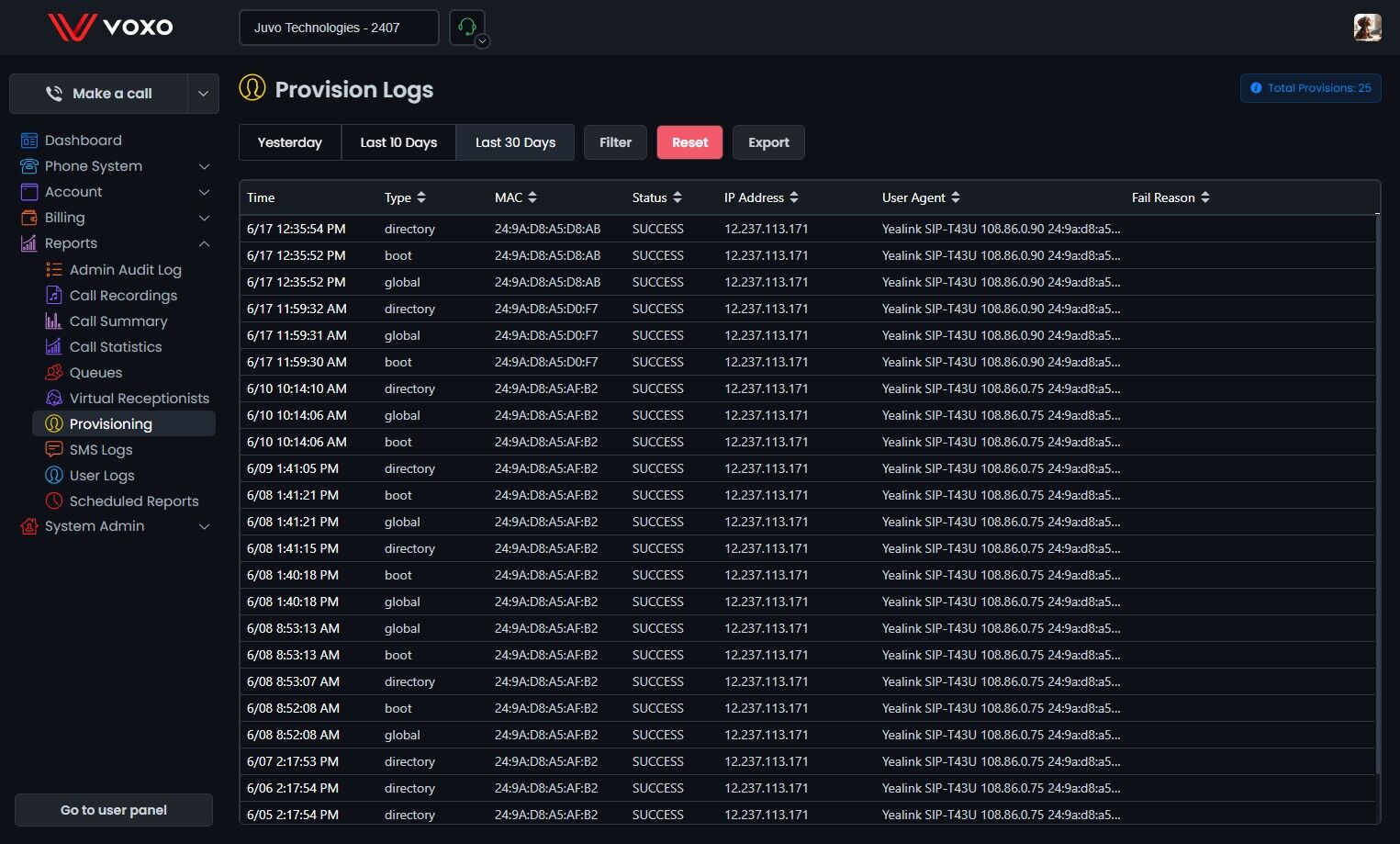

Understanding the Provision Logs Table

11. Understanding the Provision Logs Table:

  • Time: Shows the timestamp of the provisioning action.
  • Type: Indicates the type of provisioning action (e.g., directory, boot, global).
  • MAC: Displays the MAC address of the device being provisioned.
  • Status: Shows the result of the provisioning action (e.g., SUCCESS, FAILURE).
  • IP Address: Displays the IP address of the device being provisioned.
  • User Agent: Shows the user agent string of the device being provisioned.
  • Fail Reason: Provides additional details if the provisioning action failed.
